Tutorial 3: Capacity expansion modelling#
Introduction#
This tutorial demonstrates how to perform capacity expansion modeling using PyPSA (Python for Power System Analysis). We’ll build a simple power system model that optimizes the deployment of renewable energy sources (wind and solar) along with storage capacity to meet electricity demand at minimum cost.
Data preparation#
First, we need to prepare our input data. We’ll process load data and renewable generation profiles.
Step 1: Load data processing#
# imports and settings for the plotting
from pypsa import Network
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
sns.set_theme("notebook", style="white")
plt.rc("axes.spines", top=False, right=False)
# Load the data
RAW_FILE = "data/merit_order.csv"
OUTPUT_FILE = "data/load.csv"
NORMALIZE = False
RESET_INDEX_YEAR = 2019
data = pd.read_csv(RAW_FILE, index_col=0, header=0)
data = data[[col for col in data.columns if ".input" in col]].sum(axis=1)
if NORMALIZE:
data = data / data.max()
if RESET_INDEX_YEAR:
data.index = pd.date_range(
start=f"{RESET_INDEX_YEAR}-01-01", periods=len(data), freq="h"
)
data = data.to_frame()
data.index.name = "time"
data.columns = ["load"]
data.to_csv(OUTPUT_FILE)
Step 2: Combining timeseries data#
We combine the timeseries to an uniform data format for ease of use in our optimisation model.
# Load the data files
LOAD_FP = "data/load.csv"
SOLAR_FP = "data/solar.csv"
WIND_FP = "data/wind.csv"
load_data = pd.read_csv(
LOAD_FP, index_col=0, parse_dates=True, header=0, names=["load"]
)
solar_data = pd.read_csv(SOLAR_FP, header=0)
wind_data = pd.read_csv(WIND_FP, header=0)
# Combine based on load timestamps
combined_data = pd.DataFrame(index=load_data.index)
combined_data.index.name = "time"
combined_data["load"] = load_data["load"]
combined_data["solar"] = solar_data["electricity"].values
combined_data["wind"] = wind_data["electricity"].values
# Save the combined timeseries
combined_data.to_csv("data/timeseries.csv")
ts = combined_data
Network creation and optimization#
Now we’ll create our network model. We’ll analyze three different scenarios with varying cost ratios between generation and storage. We will first define some functions that reuse.
def create_network(
ts,
costs,
generation_cost_multiplier=1.0,
storage_cost_multiplier=1.0,
add_flow_battery=False,
limit_renewable_energy=False,
) -> Network:
# Adjust costs based on multipliers
costs.loc[["wind", "solar"], "capital_cost"] *= generation_cost_multiplier
costs.loc[
["battery inverter", "battery storage"], "capital_cost"
] *= storage_cost_multiplier
# initialize network
n = Network()
n.set_snapshots(ts.index)
n.add("Bus", "electricity")
# add load
n.add(
"Load",
"demand",
bus="electricity",
p_set=ts.load,
)
# add solar and wind
tech_limits = {
"wind": 150e3,
"solar": 300e3,
}
for tech in ["wind", "solar"]:
n.add(
"Generator",
tech,
bus="electricity",
p_max_pu=ts[tech],
capital_cost=costs.at[tech, "capital_cost"],
marginal_cost=costs.at[tech, "marginal_cost"],
p_nom_extendable=True,
p_nom_max=tech_limits[tech] if limit_renewable_energy else None,
)
# add short-duration battery storage
EP_RATIO = 6
n.add(
"StorageUnit",
"battery storage",
bus="electricity",
max_hours=EP_RATIO,
capital_cost=costs.at["battery inverter", "capital_cost"]
+ EP_RATIO * costs.at["battery storage", "capital_cost"],
efficiency_store=costs.at["battery inverter", "efficiency"],
efficiency_dispatch=costs.at["battery inverter", "efficiency"],
p_nom_extendable=True,
cyclic_state_of_charge=True,
)
if add_flow_battery:
# add long-duration flow battery
FLOW_EP_RATIO = 100
n.add(
"StorageUnit",
"flow battery",
bus="electricity",
max_hours=FLOW_EP_RATIO,
capital_cost=costs.at["flow battery power", "capital_cost"]
+ FLOW_EP_RATIO * costs.at["flow battery energy", "capital_cost"],
efficiency_store=costs.at["flow battery power", "efficiency"],
efficiency_dispatch=costs.at["flow battery power", "efficiency"],
p_nom_extendable=True,
cyclic_state_of_charge=True,
)
return n
Baseline scenario analysis#
For the baseline scenario, we assume only lithium ion batteries to be available.
# load the cost data
COSTS_FP = "data/costs.csv"
SOLVER_OPTIONS = {
"primal_feasibility_tolerance": 1e-5,
"dual_feasibility_tolerance": 1e-5,
}
# we decrease the tolerance to speed up the optimization (default is 1e-7)
costs = pd.read_csv(COSTS_FP, index_col=0, header=0)
n = create_network(ts, costs, add_flow_battery=False)
n.optimize(
solver_name="highs",
solver_options=SOLVER_OPTIONS,
)
Plot the energy system configuration#
fig, ax = plt.subplots(1, 1, figsize=(10, 3))
plt.subplots_adjust(hspace=0.4)
capacity_data = pd.concat(
[
n.generators.p_nom_opt,
n.storage_units.p_nom_opt,
],
axis=1,
).div(1e3)
capacity_data.columns = ["generation", "storage"]
capacity_data.plot(kind="barh", ax=ax)

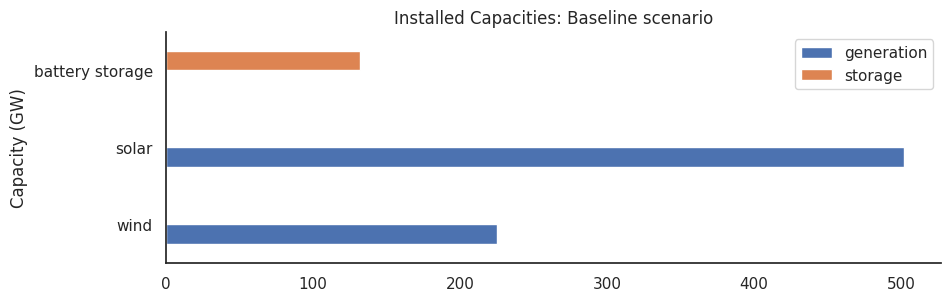

ax.set_title("Installed Capacities: Baseline scenario")
ax.set_ylabel("Capacity (GW)")
Text(0, 0.5, 'Capacity (GW)')
The baseline scenario shows very large capacities;
500 GW solar
230 GW wind
and 130 GW storage
These values exceed what could physically fit in the Netherlands. This oversizing occurs because our model treats the Netherlands as an isolated system without connections to neighboring countries, requiring full self-sufficiency in power generation.
Baseline with renewable generation limits#
n = create_network(ts, costs, add_flow_battery=False, limit_renewable_energy=True)
n.optimize(
solver_name="highs",
solver_options=SOLVER_OPTIONS,
)
Plot the energy system configuration#
fig, ax = plt.subplots(1, 1, figsize=(10, 3))
plt.subplots_adjust(hspace=0.4)
capacity_data = pd.concat(
[
n.generators.p_nom_opt,
n.storage_units.p_nom_opt,
],
axis=1,
).div(1e3)
capacity_data.columns = ["generation", "storage"]
capacity_data.plot(kind="barh", ax=ax)

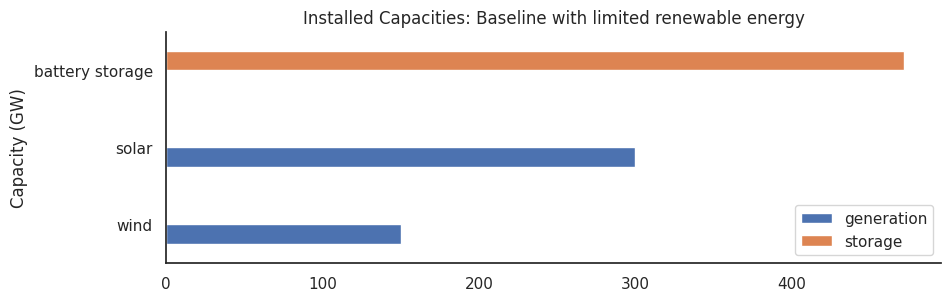

ax.set_title("Installed Capacities: Baseline with limited renewable energy")
ax.set_ylabel("Capacity (GW)")
Text(0, 0.5, 'Capacity (GW)')
Impact of generation capacity limits#
With upper limits applied to renewable generation, we see:
300 GW solar (at limit)
150 GW (at limit)
480 GW lithium-ion battery storage
The model responds to these generation constraints by heavily investing in storage capacity. This shift reveals a key system dynamic: when prevented from oversizing generation, the model compensates with massive storage deployment. However, with lithium-ion batteries limited to 6 hours of storage duration, this solution may struggle to bridge extended periods of low renewable generation, suggesting the need for longer-duration storage technologies.
Baseline with renewable generation limits and flow battery scenario#
In this scenario, in addition to the upper limit imposed on renewable energy generation we also assume also flow batteries are available for energy storage.
n = create_network(ts, costs, add_flow_battery=True, limit_renewable_energy=True)
n.optimize(
solver_name="highs",
solver_options=SOLVER_OPTIONS,
)
Plot the energy system configuration#
fig, ax = plt.subplots(1, 1, figsize=(10, 3))
plt.subplots_adjust(hspace=0.4)
capacity_data = pd.concat(
[
n.generators.p_nom_opt,
n.storage_units.p_nom_opt,
],
axis=1,
).div(1e3)
capacity_data.columns = ["generation", "storage"]
capacity_data.plot(kind="barh", ax=ax)

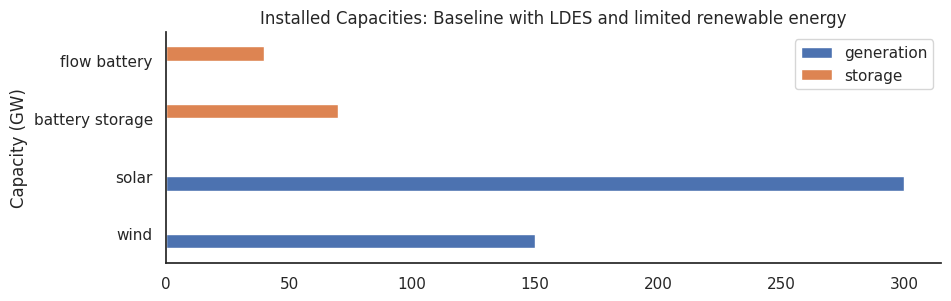

ax.set_title("Installed Capacities: Baseline with LDES and limited renewable energy")
ax.set_ylabel("Capacity (GW)")
Text(0, 0.5, 'Capacity (GW)')
Impact of adding long-duration energy storage#
After adding flow batteries (100-hour storage duration), the model selects:
300 GW solar (at limit)
150 GW wind (at limit)
80 GW battery electric storage
40 GW flow battery storage
The introduction of long-duration energy storage (LDES) reduces the need for short-duration batteries by about 80%. The model opts for a mix of both storage types, using flow batteries to manage multi-day supply gaps while keeping some battery capacity for daily cycling. This more diversified storage portfolio better matches the temporal patterns of renewable generation.
Sensitivity analysis#
Define scenarios and run the optimisation problems#
# Create and solve networks with different cost scenarios
scenarios = {
"baseline": (1.0, 1.0),
"expensive_generation": (2.0, 1.0),
"expensive_storage": (1.0, 2.0),
}
results = {}
for name, (gen_mult, store_mult) in scenarios.items():
n = create_network(
ts,
costs,
gen_mult,
store_mult,
add_flow_battery=True,
limit_renewable_energy=True,
)
n.optimize(solver_name="highs", solver_options=SOLVER_OPTIONS)
results[name] = n

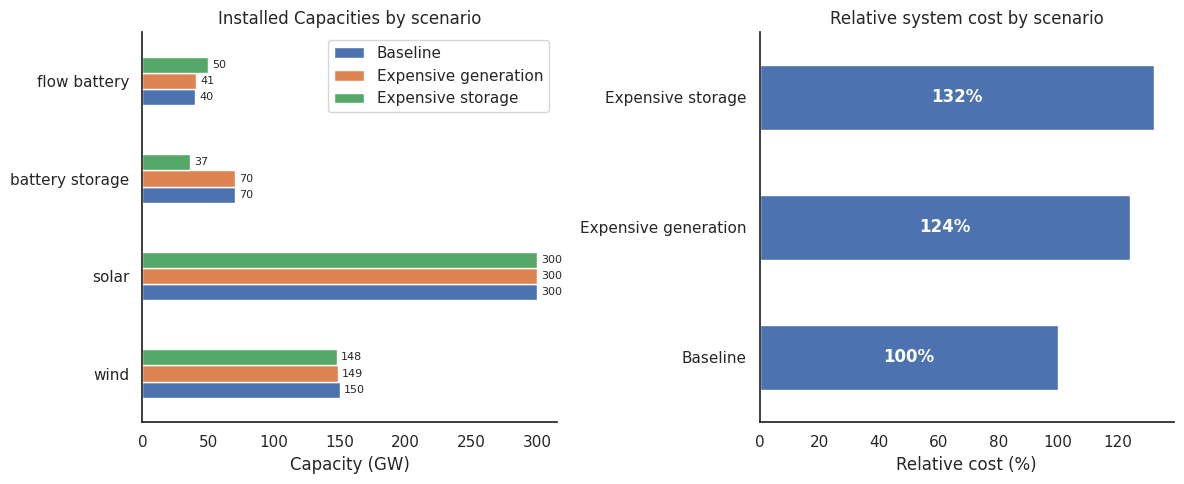

Results visualisation#
Let’s visualise the results so we can compare the results from our different scenarios.
fig, axes = plt.subplots(1, 2, figsize=(12, 5))
plt.subplots_adjust(hspace=0.4)
# Capacity comparison
capacity_data = pd.DataFrame()
for scenario, n in results.items():
caps = pd.concat([n.generators.p_nom_opt, n.storage_units.p_nom_opt]).rename(
scenario
)
capacity_data = pd.concat([capacity_data, caps], axis=1)
# convert to GW
capacity_data = capacity_data.div(1e3)
# make scenario names pretty
capacity_data.columns = [name.replace("_", " ").capitalize() for name in capacity_data.columns]
capacity_data.plot(kind="barh", ax=axes[0])
axes[0].set_title("Installed Capacities by scenario")
axes[0].set_xlabel("Capacity (GW)")
# Add data call outs
for container in axes[0].containers:
axes[0].bar_label(container, fmt='%.0f', label_type='edge', fontsize=8, padding=3)
# Cost comparison
cost_data = pd.DataFrame(
{name: n.objective for name, n in results.items()}, index=["Relative System Cost"]
).T.div(1e9)
# Normalize to baseline
cost_data = cost_data.div(cost_data.loc["baseline"]).mul(100)
# make index pretty
cost_data.index = [name.replace("_", " ").capitalize() for name in cost_data.index]
cost_data.plot(kind="barh", ax=axes[1], legend=False)
axes[1].set_title("Relative system cost by scenario")
axes[1].set_xlabel("Relative cost (%)")
for container in axes[1].containers:
axes[1].bar_label(container, fmt="%.0f%%", label_type="center", fontsize=12, color="white", fontweight="bold")
plt.tight_layout()
Sensitivity analysis results#
Comparing three cost scenarios reveals clear system adaptation patterns:
In the baseline scenario (renewable and storage costs at reference values), the model deploys 150 GW wind, 300 GW solar, with a mixed storage portfolio of 51 GW batteries and 44 GW flow batteries.
When generation costs double, wind capacity slightly decreases to 143 GW while solar remains at its 300 GW limit. Storage capacities remain similar (50 GW batteries, 50 GW flow), suggesting storage deployment is relatively insensitive to generation costs. Total system costs increase by 30%.
With doubled storage costs, the model shifts notably. While solar remains capped and wind drops slightly to 140 GW, battery storage is completely phased out in favor of increased flow battery capacity (83 GW). This suggests flow batteries’ longer duration becomes more valuable when storage is expensive. The scenario results in the highest cost increase at 34% above baseline. Interestingly, the deployed wind capacity is more sensitive towards the costs of storage than towards the cost of generation.
Detailed analysis of system dynamics#
We might be interested in specific system dynamics of one of the scenarios during a specific week. Remember the first chapter of this tutorial? We found that February has a long period of high demand due to heating. Let’s see how each of the energy system configurations fares during this period.
def plot_timeseries(network, scenario_name, week_start=0):
week_slice = slice(week_start * 168, (week_start + 1) * 168)
fig, ax = plt.subplots(figsize=(15, 6))
# slice the generation data
generation = network.generators_t.p_max_pu[week_slice] * network.generators.p_nom_opt
storage = network.storage_units_t.p[week_slice]
load = network.loads_t.p[week_slice]
# extract the negative and positive parts of the storage
storage_negative = storage.copy()
storage_negative[storage > 0] = 0
storage_negative.columns = [
f"{col} (discharging)" for col in storage_negative.columns
]
storage_positive = storage.copy()
storage_positive[storage < 0] = 0
storage_positive.columns = [f"{col} (charging)" for col in storage_positive.columns]
# combine the parts to positive and negative timeseries (on the bus)
positives = pd.concat([generation, storage_positive], axis=1).div(1e3)
negatives = pd.concat([-load, storage_negative], axis=1).div(1e3)
curtailment = -(positives.sum(axis=1) + negatives.sum(axis=1))
curtailment[curtailment > 0] = 0
curtailment.name = "curtailment"
negatives = pd.concat([negatives, curtailment], axis=1)
# Define colors for each technology
colors = {
"wind": "#4B90B9",
"solar": "#E6B829",
"demand": "#708090",
"battery storage (charging)": "#9CAF88",
"battery storage (discharging)": "#4A5D3F",
"flow battery (charging)": "#9B8EA9",
"flow battery (discharging)": "#563D67",
"curtailment": "#B07979",
}
# Apply colors to the plots
positives.plot(
kind="area",
ax=ax,
stacked=True,
color=[colors.get(col, "#333333") for col in positives.columns],
)
negatives.plot(
kind="area",
ax=ax,
stacked=True,
color=[colors.get(col, "#333333") for col in negatives.columns],
)
ax.set_ylim(-250, 250)
ax.set_title(f"Power System Operation - Week {week_start+1} - {scenario_name}")
ax.set_ylabel("Power (GW)")
ax.set_xlabel("")
plt.legend(bbox_to_anchor=(1.05, 1), loc="upper left", title="Technology", frameon=False)
return fig

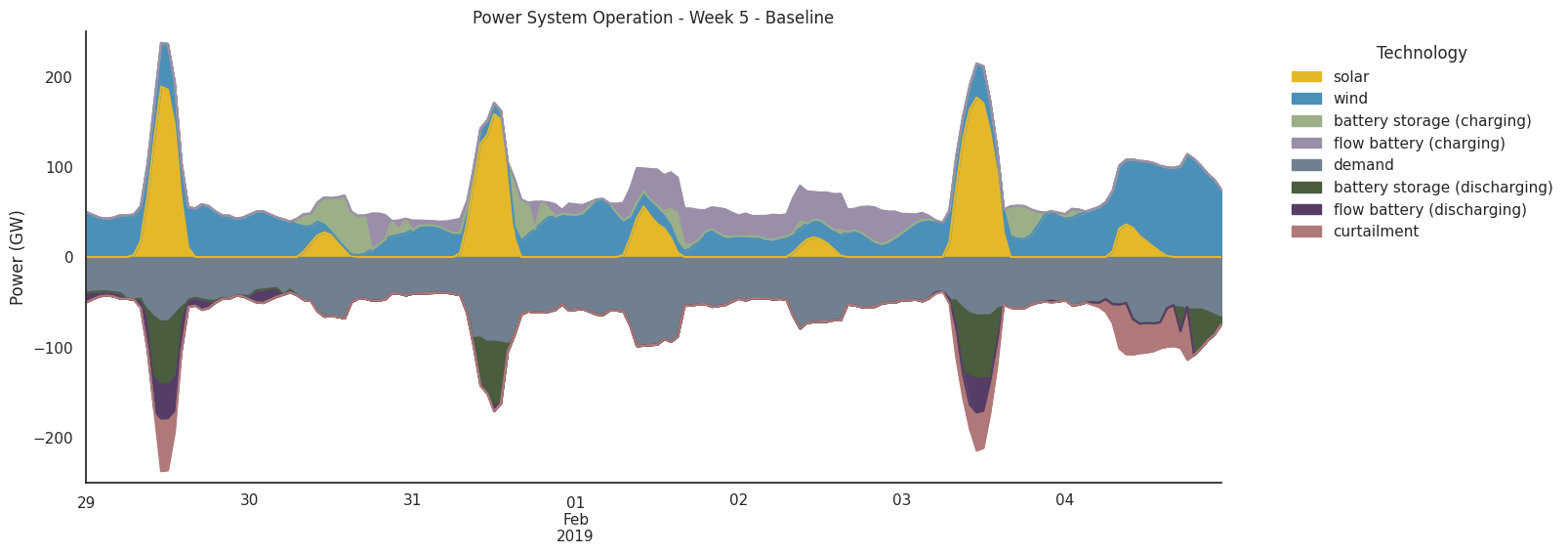

fig = plot_timeseries(
results["baseline"], "Baseline", week_start=4
)
fig = plot_timeseries(
results["expensive_generation"], "Expensive Generation", week_start=4
)
fig = plot_timeseries(
results["expensive_storage"], "Expensive Storage", week_start=4
)
/home/thesethtruth/.cache/pypoetry/virtualenvs/esi-course-6syH-QiP-py3.12/lib/python3.12/site-packages/pandas/plotting/_matplotlib/core.py:1800: UserWarning: Attempting to set identical low and high ylims makes transformation singular; automatically expanding.
ax.set_ylim(None, 0)
/home/thesethtruth/.cache/pypoetry/virtualenvs/esi-course-6syH-QiP-py3.12/lib/python3.12/site-packages/pandas/plotting/_matplotlib/core.py:1800: UserWarning: Attempting to set identical low and high ylims makes transformation singular; automatically expanding.
ax.set_ylim(None, 0)
/home/thesethtruth/.cache/pypoetry/virtualenvs/esi-course-6syH-QiP-py3.12/lib/python3.12/site-packages/pandas/plotting/_matplotlib/core.py:1800: UserWarning: Attempting to set identical low and high ylims makes transformation singular; automatically expanding.
ax.set_ylim(None, 0)
Conclusion#
The addition of long-duration storage (flow battery) allows for better management of longer periods of low renewable generation.
Different cost scenarios lead to different optimal system configurations:
Higher generation costs result in more storage capacity to make better use of available renewable energy
Higher storage costs push the system toward oversized generation capacity to reduce storage needs
The baseline scenario represents a balanced approach between generation and storage.
Next steps#
To extend this analysis, you could:
Add more technology options (e.g., different storage or dispatchables technologies)
Analyze seasonal patterns using the full year of data
Include more detailed cost components (fixed O&M, variable O&M, etc.)
